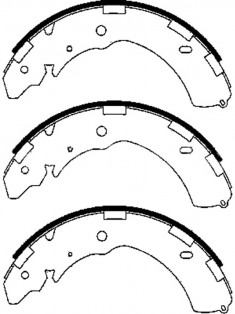

| Specification | |
|---|---|
| Radius | 147.5 |
| Width | 50 |
| Thickness | 3.2 / 6.7 |
| Pcs In Set | 4 |
| E-mark |
| Owner | Number |
|---|---|
| BENDIX AUS | BS5018 |
| BREMBO | S54523 |
| DELPHI | LS2064 |
| FBK | FN6741 |
| FIAT | 6000609727 |
| GM | 94726878 |
| GM | 97947766 |
| GM | 97947767 |
| GM | 97947768 |
| GM | 97947802 |
| ISUZU | 5-87832-257-0 |
| ISUZU | 8-97662-756-0 |
| ISUZU | 8-97834-826-0 |
| ISUZU | 8-97835-448-0 |
| ISUZU | 8-97947-384-0 |
| ISUZU | 8-97947-386-0 |
| ISUZU | 8-97947-387-0 |
| ISUZU | 8-97947-734-0 |
| ISUZU | 8-97947-735-0 |
| ISUZU | 8-97947-736-0 |
| ISUZU | 8-97947-766-0 |
| ISUZU | 8-97947-767-0 |
| ISUZU | 8-97947-768-0 |
| ISUZU | 8-97947-802-0 |
| ISUZU | 8-98346-171-0 |
| J1 | J1F6741 |
| JAPANPARTS | GF-510AF |
| KASHIYAMA | K4473 |
| KASHIYAMA | K6741 |
| LYNXauto | BS-5508 |
| MITSUBISHI | 4600A018 |
| MITSUBISHI | 4600A106 |
| MITSUBISHI | 4600A122 |
| TEXTAR | 91073000 |
| TRW | GS7846 |
| TRW | GS7887 |
| TRW | GS8768 |
| Copyright © 2024 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.05~04.11 | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 01.05~04.15 | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 04.10~ | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 07.15~05.19 | 2400 | 4N15 | KL1T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 05.05~03.15 | 2500 | 4D56 | K_4T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2400 | 4N15 | KL2T | FR0358V | FP1519 | FT3319 | ||
| 05.98~08.03 | 2800 | 4M40 | K57T | FR0358V | FP1519 | FT3319 | ||
| 05.07~03.14 | 3200 | 4M41 | KB8T | FR0358V | FP1519 | FT3319 | ||
| 05.05~08.07 | 2800 | 4M40 | KB7T | FR0358V | FP1519 | FT3319 | ||
| 05.05~03.15 | 3500 | 6G74 | KB9T | FR0358V | FP1519 | FT3319 | ||
| 06.06~03.15 | 2400 | 4G64 | KA5T | FR0358V | FP1519 | FT3311FT3319 | ||
| 01.15~05.19 | 2500 | 4D56 | KL3T | FR0358V | FP1519 | FT3319 | ||
| 05.05~04.15 | 3500 | 6G74 | KA9T | FP1519 | FT3319 | |||
| 12.05~08.06 | 2400 | 4G64 | KB5T | FR0358V | FP1519 | FT3319 | ||
| 06.19~ | 2400 | 4N15 | KL1T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 06.19~ | 2200 | 4N14 | KL6T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 06.19~ | 2200 | 4N14 | KK6T | FR0358V | FP1519 | FT3319 |
| 09.06~09.11 | 3500 | 6G74 | KB7T | FR0358V | FP1519 | FT3319 | ||
| 03.06~09.11 | 3500 | 6G74 | KB9T | FP1519 | FT3319 | |||
| 03.06~01.15 | 3500 | 6G74 | KB9T | FR0358V | FP1519 | FT3319 | ||
| 03.06~ | 3200 | 4M41 | KB8T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2400 | 4N15 | KK1T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2500 | 4D56 | KL3T | FP1519 | FT3319 | |||
| 01.15~ | 2400 | 4N15 | KK2T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2500 | 4D56 | KK3T | FR0358V | FP1519 | FT3319 | ||
| 05.05~12.14 | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2400 | 4G64 | KL4T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2500 | 4N15 | KL1T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 01.15~ | 2400 | 4G64 | KK4T | FR0358V | FP1519 | FT3319 |
| 01.08~ | 2500 | 4D56 | KG4W | FR0358V | FP1519 | FT3319 | ||
| 07.08~ | 2500 | 4D56 | KH4W | FR0358V | FP1519 | FR0769V | FT3319FP0733 |
| 07.08~09.15 | 3500 | 6G74 | KH9W | FR0358V | FP1519 | FR0769V | FT3319FP0733 | FT3054 |
| 10.15~ | 2500 | 4D56 | KS3W | FR0358V | FP1519 | FR1327V | FT3319FP0733 |
| 10.15~ | 2500 | 4D56 | KR3W | FR0358V | FP1519 | FR1327V | FP0733FT3319 | |
| 07.08~01.14 | 3000 | 6B31 | KH6W | FR0358V | FP1519 | FR0769V | FT3319FP0733 | FT3054 |
| 10.06~01.12 | 2500 | 4JA1-T | TFR85 | FP1677 | FT3319 | |||
| 01.13~12.16 | 3000 | 4JJ1-T | TFS85JDR | FR0770V | FP1677 | FT3319 | ||
| 01.16~10.19 | 2500 | 4JK1-TCX | TFS86 | FR0770V | FP1677 | FT3319 | ||
| 09.15~ | 2500 | 4JK1-TCX | TF_86 | FR0770V | FP1677 | FT3319 | ||
| 03.12~ | 2500 | 4JK1-TCY | TFS86 EU RHD | FR0770V | FP1677 | FT3319 | ||
| 06.12~ | 3000 | 4JJ1-TCX | TFR85 | FR0770V | FP1677 | FT3319 | ||
| 01.16~ | 1900 | RZ4E-TC | TF_87 | FT3319 | ||||
| 02.17~ | 1900 | RZ4E-TCX | TFR87 | FR0438V | FP1677 | FT3319 | ||
| 07.20~ | 3000 | 4JJ3-TCX | TFS40 RHD | FT3319 | ||||
| 01.17~ | 3000 | 4JJ1-TCX | TFS85JDL | FR0770V | FP1677 | FT3319 | ||
| 01.16~10.19 | 2500 | 4JK1-TCX | TGS86 INDIA | FT3319 | ||||
| 03.12~ | 2500 | 4JK1-TCY | TFS86 ML RHD | FR0770V | FP1677 | FT3319 | ||
| 03.12~01.16 | 2500 | 4JK1-TCX | TFS86 LA RHD | FR0770V | FP1677 | FT3319 | ||
| 10.16~ | 2500 | 4JK1-TCX | TFR86 RHD | FR0770V | FP1677 | FT3319 | ||
| 01.17~ | 2500 | 4JK1-TCX | TFS86 LHD | FR0770V | FP1677 | FT3319 | ||
| 10.18~ | 2500 | 4JK1-TCX | TFS86 LHD | FR0770V | FP1677 | FT3319 | ||
| 06.12~05.17 | 3000 | 4JJ1-TCS | TFS85J LHD | FR0770V | FP1677 | FT3319 | ||
| 11.19~ | 2500 | 4JK1-TCS | TFR86 INDIA LHD | FR0438V | FP1677 | FT3319 | ||
| 02.17~ | 1900 | RZ4E-TCX | TFS87 | FT3319 | ||||
| 09.19~ | 1900 | RZ4E-TC | TFS87 ML RHD | FT3319 |
| 01.13~01.14 | 3000 | 4JJ1 | MIDDLE EAST | FR0770V | FP1677 | FT3319 | ||
| 10.18~ | 2500 | 4JK1-TCX | TFS86 | FR0770V | FP1677 | FT3319 |
| 01.09~01.16 | 2800 | LWH | LT# | FR0770V | FP1677 | FT3319 | ||
| 01.12~12.14 | 2500 | LVN | S10 | FR0438V | FP1677 | FT3319 | ||
| 01.17~01.21 | 2800 | LWN | LT# | FP1736 | FT3319 | |||
| 01.12~01.17 | 2800 | LWN | LT# | FR0770V | FP1677 | FT3319 | ||
| 01.14~01.17 | 2500 | LKH | LT# | FR0770VFR0438V | FP1677 | FT3319 | ||
| 01.12~01.17 | 3600 | LY7 | LT# | FR0770VFR0438V | FP1677 | FT3319 | ||
| 01.17~ | 2500 | LP2 | LT# | FP1736 | FT3319 | |||
| 01.17~ | 2500 | LKH | 12L43 RHD | FP1736 | FT3319 |
| 03.15~12.19 | 2500 | UAL3217 | 503J85101510 | FR0358V | FP1519 | FT3319 | ||
| 04.16~12.19 | 2500 | 4D56 | 5034B5101000 | FR0358V | FP1519 | FT3319 |
| 06.20~ | 3000 | 4JJ3-TCX | MP2TFS40 | FT3319 | ||||
| 06.20~ | 1900 | RZ4E-TCX | MP2TFR87 | FR0438V | FP1677 | FT3319 | ||
| 06.20~ | 1900 | RZ4E-TCX | MP2TFS87 | FT3319 |
