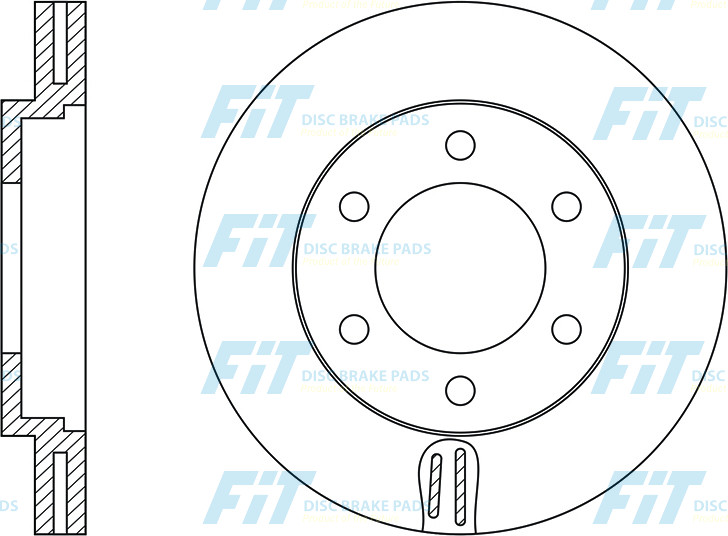

| Specification | |
|---|---|
| Type | Vented |
| Outter Ø | 294 |
| Num. of holes | 6 |
| Disc Thickness (Max) | 28 |
| Height | 46.4 |
| Centering Diameter | 94 |
| Pitch Circle Ø | 139.7 |
| Front/Rear | Front |
| Drum Ø: | 171 |
| Owner | Number |
|---|---|
| ATE | 24.0128-0309.1 |
| ATE | 24.0128-0312.1 |
| ATE | 24.0128-0325.1 |
| Blue Print | ADC443107 |
| Blue Print | ADC443133 |
| BREMBO | 09.A868.11 |
| BREMBO | 09.D576.11 |
| Febi | 170044 |
| Febi | 28437 |
| FIAT | 6000609712 |
| FIAT | 6000611049 |
| LYNXauto | BN-1762 |
| MITSUBISHI | 4615A002 |
| MITSUBISHI | 4615A147 |
| MITSUBISHI | 4615A201 |
| MITSUBISHI | 4615A203 |
| MITSUBISHI | MN102276 |
| NISSHINBO | ND3009K |
| SWAG | 33 10 6375 |
| SWAG | 80928437 |
| TEXTAR | 92180203 |
| TRW | DF4920 |
| Copyright © 2025 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.08~01.14 | 3000 | 6B31 | KH6W | FR0358V | FP1519 | FR0769V | FP0733 | FT3054 |
| 06.13~11.16 | 2500 | 4D56 | KH4W | FR0358V | FP1519 | FR0769V | FP0733 | FT3054 |
| 06.13~11.15 | 3000 | 6B31 | KH6W | FR0358V | FP1519 | FR0769V | FP0733 | FT3054 |
| 07.08~09.15 | 3500 | 6G74 | KH9W | FR0358V | FP1519 | FR0769V | FT3319FP0733 | FT3054 |
| 10.15~ | 2500 | 4D56 | KS3W | FR0358V | FP1519 | FR1327V | FT3319FP0733 | |
| 08.08~09.13 | 2500 | 4D56-T | KH4W RU | FR0358V | FP1519 | FR0769V | FP0733 | FT3054 |
| 01.05~04.11 | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 01.05~04.15 | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 04.10~ | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 07.15~05.19 | 2400 | 4N15 | KL1T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 05.05~03.15 | 2500 | 4D56 | K_4T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2400 | 4N15 | KL2T | FR0358V | FP1519 | FT3319 | ||
| 05.98~08.03 | 2800 | 4M40 | K57T | FR0358V | FP1519 | FT3319 | ||
| 05.07~03.14 | 3200 | 4M41 | KB8T | FR0358V | FP1519 | FT3319 | ||
| 06.06~03.15 | 2400 | 4G64 | KA5T | FR0358V | FP1519 | FT3311FT3319 | ||
| 05.05~08.07 | 2800 | 4M40 | KB7T | FR0358V | FP1519 | FT3319 | ||
| 05.05~03.15 | 3500 | 6G74 | KB9T | FR0358V | FP1519 | FT3319 | ||
| 01.15~05.19 | 2500 | 4D56 | KL3T | FR0358V | FP1519 | FT3319 | ||
| 06.19~ | 2400 | 4N15 | KL1T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 06.19~ | 2200 | 4N14 | KL6T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 12.05~08.06 | 2400 | 4G64 | KB5T | FR0358V | FP1519 | FT3319 | ||
| 06.19~ | 2200 | 4N14 | KK6T | FR0358V | FP1519 | FT3319 |
| 03.06~01.15 | 3500 | 6G74 | KB9T | FR0358V | FP1519 | FT3319 | ||
| 09.06~09.11 | 3500 | 6G74 | KB7T | FR0358V | FP1519 | FT3319 | ||
| 03.06~ | 3200 | 4M41 | KB8T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2400 | 4N15 | KK1T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2400 | 4N15 | KK2T | FR0358V | FP1519 | FT3319 | ||
| 05.05~12.14 | 2500 | 4D56 | KB4T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2400 | 4G64 | KL4T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2500 | 4D56 | KK3T | FR0358V | FP1519 | FT3319 | ||
| 01.15~ | 2500 | 4N15 | KL1T | FR0358VFR1326V | FP1519FP1258 | FT3319 | ||
| 01.15~ | 2400 | 4G64 | KK4T | FR0358V | FP1519 | FT3319 | ||
| 05.15~05.19 | 2500 | 4D56 | KP3T | FR0358V | FP1519 | FT3319 |
| 01.08~ | 3200 | 4M41 | KH8W | FR0358V | FP1519 | FR0769V | FP0733 | FT3054 |
| 01.08~ | 2500 | 4D56 | KG4W | FR0358V | FP1519 | FT3319 | ||
| 07.08~ | 2500 | 4D56 | KH4W | FR0358V | FP1519 | FR0769V | FT3319FP0733 |
| 10.15~ | 2500 | 4D56 | KR3W | FR0358V | FP1519 | FR1327V | FP0733FT3319 | |
| 07.08~01.14 | 3000 | 6B31 | KH6W | FR0358V | FP1519 | FR0769V | FT3319FP0733 | FT3054 |
| 03.15~12.19 | 2500 | UAL3217 | 503J85101510 | FR0358V | FP1519 | FT3319 | ||
| 04.16~12.19 | 2500 | 4D56 | 5034B5101000 | FR0358V | FP1519 | FT3319 |
