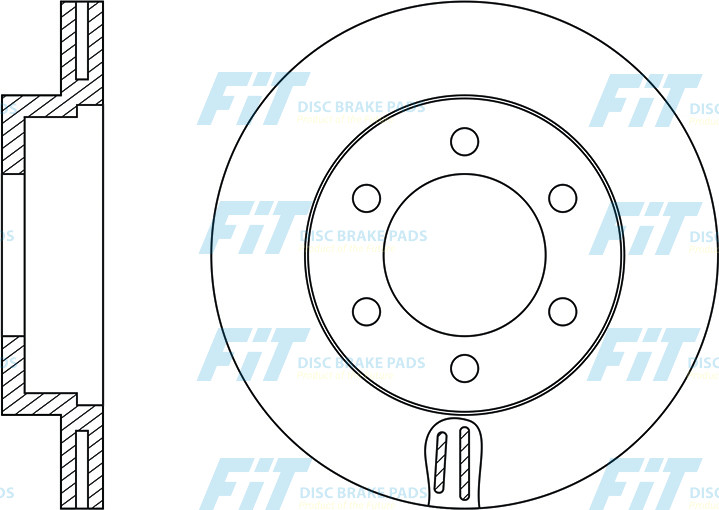

| Specification | |
|---|---|
| Type | Vented |
| Outter Ø | 337.7 |
| Num. of holes | 6 |
| Disc Thickness (Max) | 28 |
| Height | 67.3 |
| Centering Diameter | 108 |
| Pitch Circle Ø | 139.7 |
| Front/Rear | Front |
| Drum Ø: | 172 |
| Owner | Number |
|---|---|
| APEC | DSK2280 |
| ATE | 24.0128-0194.1 |
| Blue Print | ADT343161 |
| BREMBO | 09.A204.10 |
| CAR | 142.1281 |
| CIFAM | 800-968 |
| DELPHI | BG4052 |
| Febi | 170780 |
| FERODO | DDF1594 |
| Fri.tech. | DF924 |
| GIRLING | 6044941 |
| INTERBRAKE | TT261V |
| JAPANPARTS | DI-2003 |
| LEXUS | 43512-60160 |
| LEXUS | 4351260151 |
| LPR | T2027V |
| LUCAS | DF4494 |
| LYNXauto | BN-1158 |
| Metelli | 23-0968 |
| NIPPARTS | J3302146 |
| NISSHINBO | ND1045K |
| OEM | 4352130150 |
| PAGID | 54373 |
| PILENGA | V647 |
| REMSA | 6706.10 |
| ROADHOUSE | 6706.10 |
| SBS | 1815204598 |
| SWAG | 33 10 6591 |
| TEXTAR | 92137300 |
| TOYOTA | 43512-60150 |
| TOYOTA | 43512-60151 |
| TRADEX | TBD1100 |
| TRUSTING | DF924 |
| TRW | DF4494 |
| WOKING | D6706.10 |
| ZIMMERMANN | 590.2586.00 |
| Copyright © 2025 | |
| Years | Eng Vol | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.02~08.09 | 3000 | 5L-E | LJ125 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 2TR-FE | TRJ120 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120W | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ121R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ120 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ125 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ125L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 2TR-FE | TRJ125 | FR0332V | FP0976 | FR0328V | FP0606 | |
| 09.02~08.09 | 3000 | 1KD-FTV | KDJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 5L-E | LJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 5L-E | LJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 4000 | 1GR-FE | GRJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 1KZ-TE | KZJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.09 | 3000 | 1KD-FTV | KDJ120W | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 3000 | 1KD-FTV | KDJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.05 | 3400 | 5VZ-FE | VZJ120W | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.05 | 3400 | 5VZ-FE | VZJ125 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 3000 | 1KZ-TE | KZJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.04~08.09 | 2700 | 2TR-FE | TRJ125L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.09 | 2700 | 3RZ-FE | RZJ120R | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 09.02~08.04 | 2700 | 3RZ-FE | RZJ120L | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.09 | 4000 | 1GR-FE | GRN210 | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 11.02~08.09 | 4000 | 1GR-FE | GRN215L | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.02~05.20 | 4700 | 2UZ-FE | UZN215 | FR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
| 08.02~08.09 | 4700 | 2UZ-FE | UZN210 | FR0551VFR0332V | FP0976 | FR0328V | FP0606 | FT1098 |
