FiT » ROTOR DISC » FR0583V Feedback Information NEW!

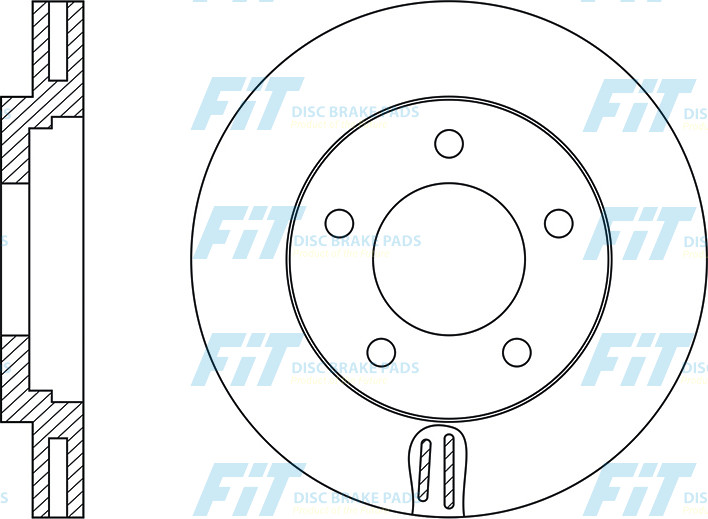

Image Of FR0583V
Specification
Type Vented
Disc Thickness (Max) 28
Num. of holes 5
Height 45.5
Centering Diameter 84
Front/Rear Front
Pitch Circle Ø 110
Outter Ø 285
Disc Thickness (Min) 26
Drum Ø: 150
Structure Material G3000
Owner Number
AP 24717
BENDIX 562118B
BRADI 1.52A2.2.4
BRECO BS 8296
BREMBO 09.7285.10
DELPHI BG3190
FERODO DDF1039
Fri.tech. DF518
GIRLING 6043471
INTERCAR TY771V
JURID 562118J
LPR T2771V
LUCAS DF4347
LYNXauto BN-1996
MINTEX MDC884
NISSHINBO ND1100
PAGID 50241
PILENGA V677
QH BDC4944
REMSA 6939.10
ROADHOUSE 6939.10
SBS 1815204561
SBS 333353
TEXTAR 92093400
TOYOTA 43512-26120
TRUSTING DF518
Copyright © 2025
Years Eng Vol Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
TOYOTA   »   Hiace Regius
08.98~08.04 3000 5L-E LH162R FR0583VFR0580V FP1045FP1344FP1067 FT1196FT1194
08.89~02.08 2400 2RZ-E RZH101G FR0580VFR0583V FP1045FP1344FP1067 FT1189FT1194
08.95~08.02 2400 2RZ-E RZH111G FR0583V FP1344FP1067 FT1194
08.89~08.95 2000 1RZ-E RZH100G FR0583VFR0580V FP1045FP1344FP1067 FT1189FT1194
08.89~08.98 2800 3L LH125B FR0580VFR0583V FP1045 FT1189FT1194
08.93~08.04 3000 1KZ-TE KZH120G FR0583VFR0415V FP1344FP1067 FT1194FT1184
08.89~07.03 2000 1RZ-# RZH124B FR0580VFR0583VFR0377V FP1045FP1344FP1067 FT1194FT1189
08.95~07.99 2400 2RZ-E RZH133V FR0583V FP1344FP1067 FT1194
08.93~08.04 3000 1KZ-TE KZH100G FR0583V FP1344FP1067 FT1194
08.93~08.04 3000 1KZ-TE KZH110G FR0583V FP1344FP1067 FT1194
08.95~08.04 3000 1KZ-TE KZH110G FR0583V FP1344FP1067 FT1194
TOYOTA   »   Hiace
08.93~08.99 2800 3L LH103V FR0583VFR0580V FP1045FP1344 FT1194
08.95~08.04 3000 1KZ-TE KZH132V FR0583V FP1344FP1067 FT1194
08.89~01.05 2400 2RZ-E RZH113L FR0580VFR0583V FP1045FP1344FP1067 FT1194FT1189
08.89~02.06 2400 2RZ-E RZH113R FR0580VFR0583V FP1045FP1344 FT1194
TOYOTA   »   Hiace Commuter
08.89~02.06 3000 5L-E LH174R FR0580VFR0583V FP1045FP1344FP1067 FT1194
08.89~01.00 2800 3L LH115R FR0580VFR0583V FP1045FP1344 FT1194FT1189
08.89~01.00 2800 3L LH115B FR0580VFR0583V FP1045 FT1189FT1194
08.89~08.04 2400 2L LH102L FR0580VFR0583V FT1163FP1045FP1344FP1067
08.89~02.06 2400 2RZ RZH103R FR0580VFR0583V FP1045FP1344 FT1189FT1194
08.89~02.06 2400 2L LH104L FR0580VFR0583V FP1045FP1344FT1163FP1067 FT1194FT1189
TOYOTA   »   Hiace Van
08.89~08.05 2400 2RZ-E RZH115L FR0583VFR0580V FP1045FP1344FP1067 FT1194
08.89~02.06 2400 2L LH112R FR0580VFR0583V FP1045FP1344FT1163FP1067 FT1194
08.89~02.06 2000 1RZ-E RZH102 FR0580VFR0583V FP1344FP1045 FT1189FT1194
08.89~09.05 2800 3L LH113R FR0580VFR0583V FP1045FP1344FT1163FP1067 FT1194
08.89~02.06 2400 2L LH114R FR0580VFR0583V FP1045FP1344FT1163FP1067
